SOL6157-GR-U

Solitine / Cat-6

SOL6157-GR-U

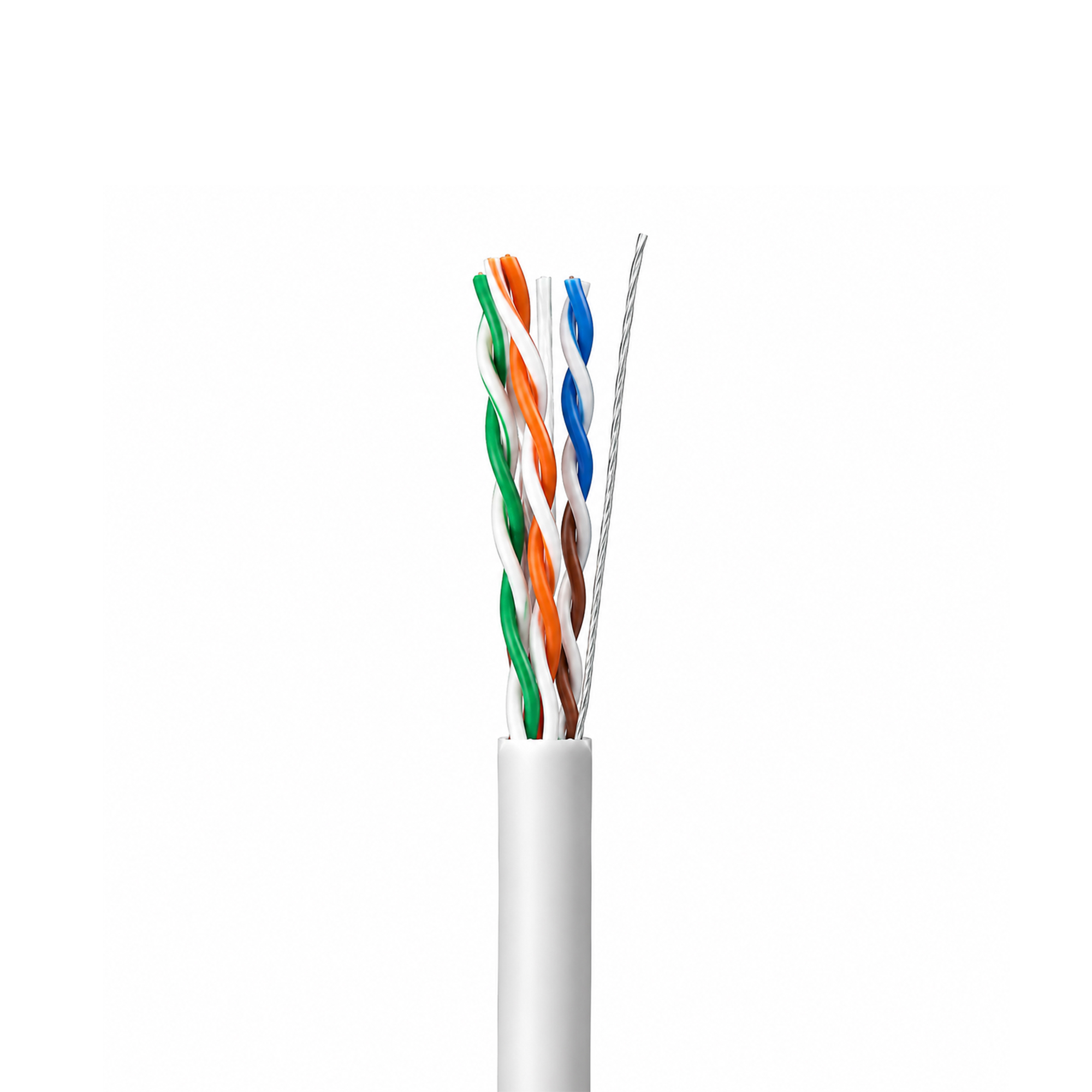

SOLITINE UTP CAT6 Solid Cable Grey

Key Features
  • 23 AWG solid bare copper conductors for maximum conductivity and performance
  • 250 MHz bandwidth supporting 1 Gbps @ 100m
  • UTP design with PE central cross separator for reduced crosstalk and better signal quality
  • FR PVC jacket, RoHS compliant, TIA/EIA-568 & ISO/IEC 11801 certified
Brand Solitine
Category Cat-6
Model SOL6157-GR-U
Availability In Stock
General
Cable Type UTP Cat 6 Solid Installation Cable
Color Grey
Cable Specifications
Category Cat 6
Conductor Material 100% Bare Copper (Solid)
Conductor Size 23 AWG
Cable Length 305m (1000 ft) Box/Reel
Number of Pairs 4 Twisted Pairs (8 conductors)
Bandwidth 250 MHz
Data Rate 1 Gbps up to 100m (supports 10 Gbps over shorter distances)
Shielding
Shield Type UTP (U/UTP)
Physical
Outer Diameter ≈ 6.0 – 6.6 mm
Jacket Material FR PVC (Flame Retardant) / LSZH option
Jacket Type PVC
Standards
ANSI/TIA Compliance ANSI/TIA/EIA-568-B.2 / TIA-568-C.2
ISO/IEC Compliance ISO/IEC 11801 Class E
Environment
Operating Temperature -20°C to +60°C
Others

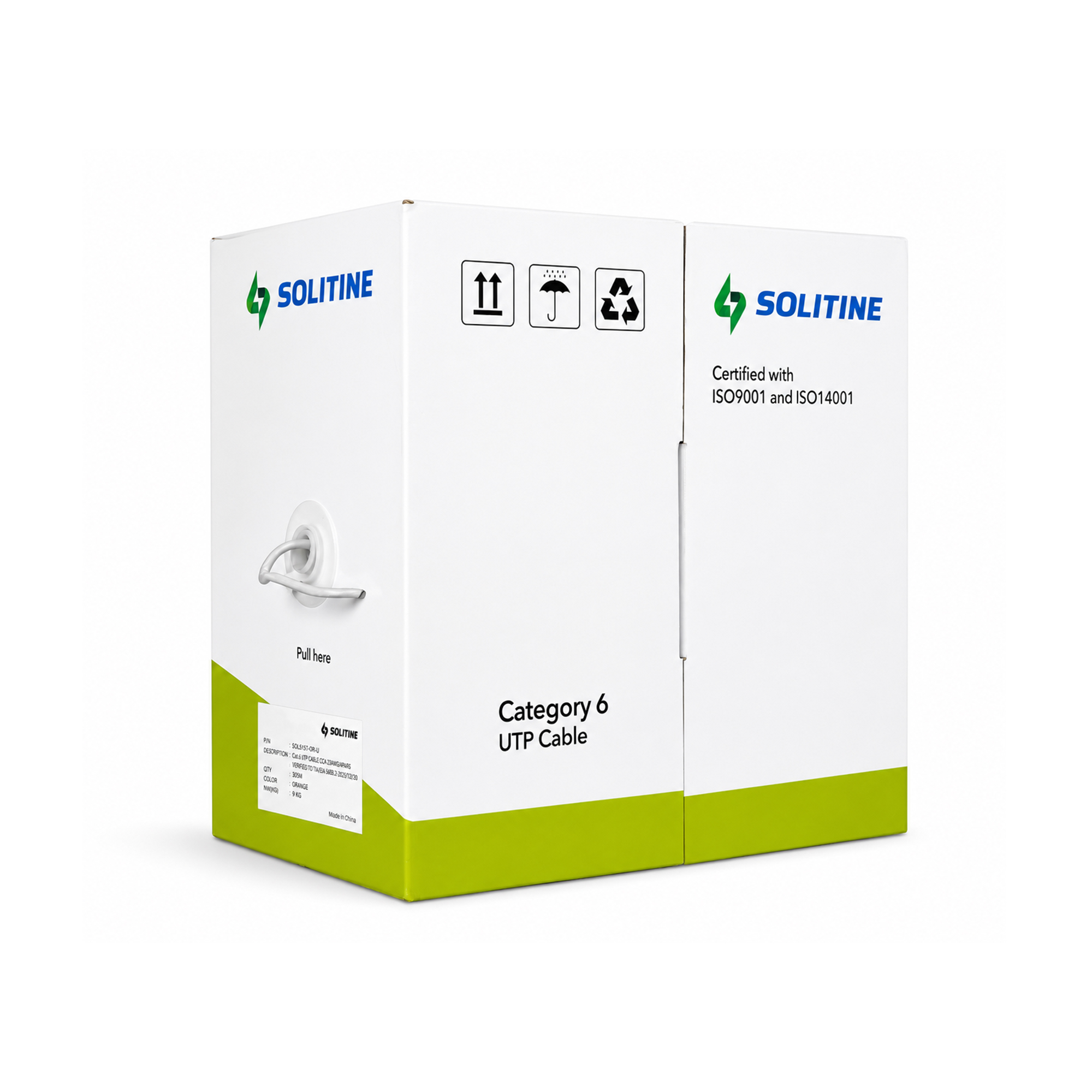

Package Content 305m Cable in easy-pull Box, Rip Cord, PE Central Cross Separator
Warranty & Support
Warranty 1 Year Official Warranty
