Hardware
| Standard&Protocol |
IEEE802.3, IEEE802.3u,IEEE802.3ab |
| Interface |
1*10/100/1000Mbps WAN port 3*10/100/1000Mbps LAN ports |
| Antenna |
6*6dBi external antennas |
| Button |
1* WPS/Reset button |
| Power |
Input：AC 100-240V~50/60Hz 0.6A Output：DC 12V1.5A |
| LED indicator |
Sys*1,WAN*1, LAN*1,WiFi/WPS*1 |
| Dimensions |
9.11 * 5.93* 1.56 in (231.3X150.6X39.6mm) |
Wireless
| Wireless Standards |
IEEE 802.11ac wave2/a/n 5GHz IEEE 802.11b/g/n 2.4GHz |
| Data Rate |
5GHz: Up to 1733Mbps 2.4GHz: Up to 300Mbps |
| Frequency |
Simultaneous dual band 2.4 & 5GHz |
| Transmission Power |
CE: <20dBm(2.4G) <23dBm(5G) |
| Wireless Security |
WPA-PSK/WPA2-PSK, WPA/WPA2 Wireless Security: Enable/Disable WPS(WiFi Protected Set-up) fast encryption |
| Basic Features |
IPv6 Features Supported Bandwidth Control Guest Network IPTV MAC Clone Static Routing System Log Backup & Restore configurations Firmware upgrade online Firmware upgradeable via browser |
Software
| Internet Connection Type |
PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia) |
| Operating Mode |
Wireless Router Mode Universal Repeater Mode WISP Mode |
| DHCP |
DHCP Server DHCP Client List DHCP Reservation |
| Virtual Server |
Port Forwarding DMZ Host UPnP |
| Firewall |
Forbid UDP flood attack Forbid TCP flood attack Forbid ICMP attack Forbid WAN PING from internet |
| DDNS |
no-ip,DynDNS,Oray, 88ip |
| VPN |
IPsec pass through PPTP pass through L2TP pass through PPTP server PPTP client L2TP client |
| Special Features |
Smart Traffic Prioritisation PPPoE Username/password Clone Smart WiFi Schedule Smart Power Saving Smart LED on/off Tenda Cloud Tenda App |
Others
| Temperature |
Operating Temperature: 0℃ ~ 40℃ Storage Temperature: -40℃ ~ 70℃. |
| Humidity |
Operating Humidity:10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90%RH non-condensing. |
| Certification |
CE/FCC/RoHS |
| Package Content |
Wireles Router*1 Power Adapter *1 Install Guide*1 Ethernet Cable*1 |
Warranty & Support
| Warranty |
1 Year Official Warranty |

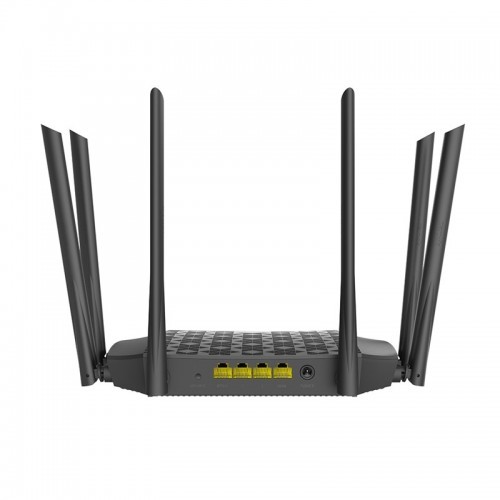

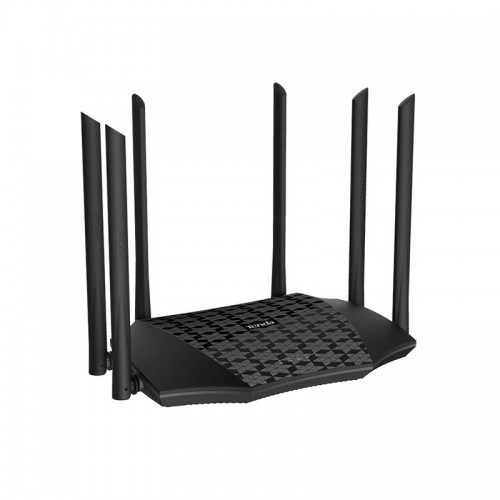

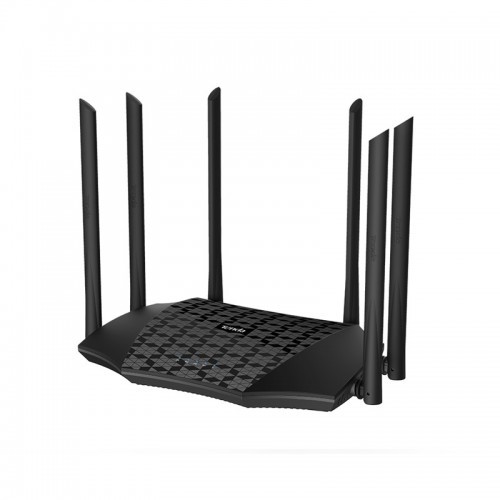

The Tenda AC21 Dual Band Gigabit Wireless Router adopted with 802.11 ac wave2 techonology and provides speed up to 2033 Mbps (1733Mbps for 5GHz and 300Mbps for 2.4GHz) to get the most out of your gigabit fiber internet. This new Tenda Gigabit router is powered by 4X4 MU-MIMO techonology of 5 GHz band, it provides wider WiFi coverage and faster WiFi speed than regular routers with 3X3 MU-MIMO techonology and also equipped with full gigabit ports, it supports up to 1000Mbps bandwith access. The new Tenda AC21 Dual Band Gigabit Wireless Router built-in signal amplifier used both on 2.4GHz and 5GHz bands of AC21 to enhance the penetration capability and expand the WiFi coverage. It is also comes with 6 x 6 dBi external antennas and four data streams of 5Ghz band, the AC21 can provide optimized WiFi coverage and better 5GHz WiFi signal. In this router, the 28nm 1GHz CPU equipped with 500MHz co-processor, dual core design brings a faster processing speed and provides optimized operation. Here, the AC21 supports IPv6, it can reduce the data transmission time and minimize the lag, provide a better gaming experience. The new exclusive Tenda AC21 2033mbps AC2100 Dual Band Gigabit Wireless Router has 01 year warranty.
