BE12 Pro

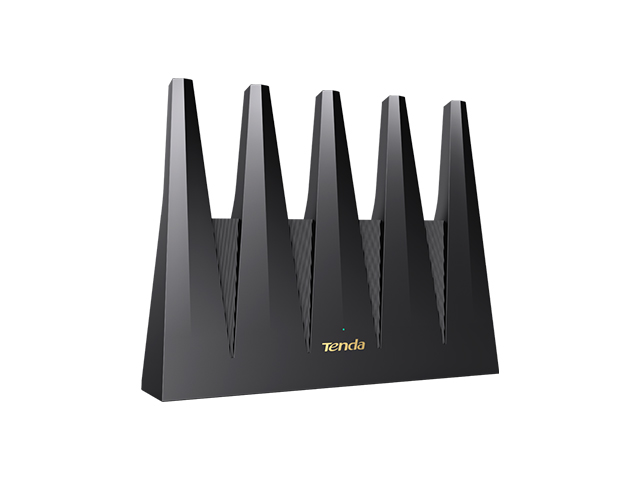

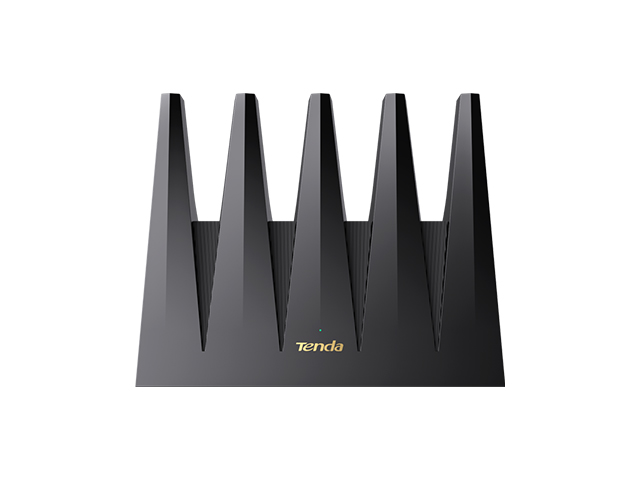

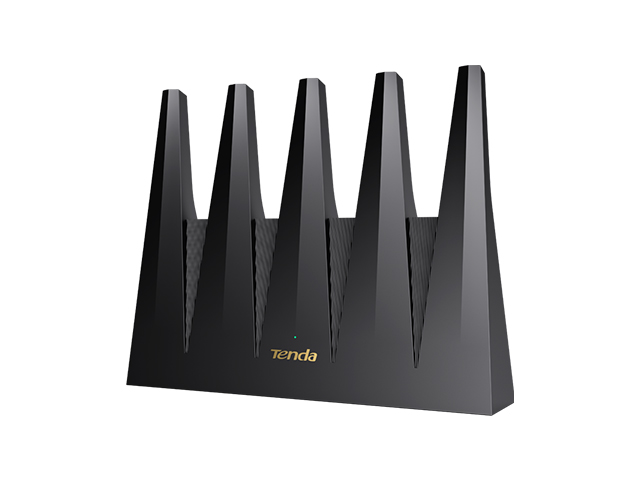

Tenda BE12 Pro BE7200 Dual Band Gigabit Wi-Fi 7 Router

Key Features

BE7200 Dual-Band Wi-Fi 7 (up to 7141 Mbps) with MLO, 4K-QAM & Multi-RU for ultra-low latency
Quad-core 2.0 GHz CPU (18,400 DMIPS) + 512 MB RAM with 9 FEMs and 5T5R on 5 GHz
Dual 2.5G WAN/LAN ports + 3 Gigabit ports for high-speed wired connectivity
Vertical design, Xtra Range 3.0, EasyMesh, NFC, IoT Network & advanced VPN support

Brand Tenda

Category Router

Model BE12 Pro

Availability Discontinued

Hardware

Standard&Protocol	IEEE802.3, IEEE802.3u, IEEE802.3ab
CPU	4-Core 2.0 GHz CPU
RAM	512 MB

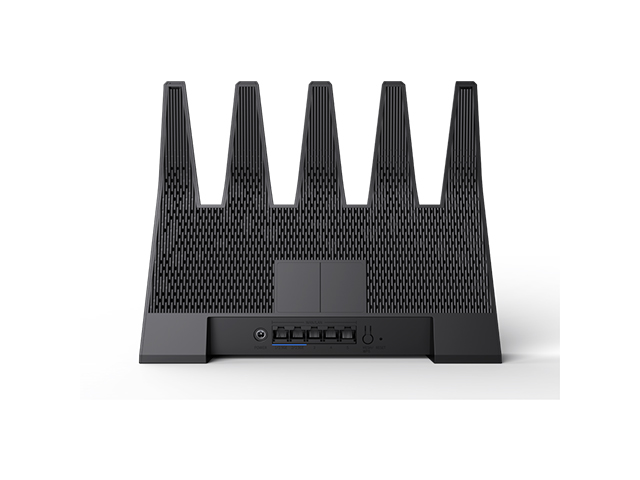

Interface	2× 10/100/1000/2500 Mbps WAN/LAN ports, 3× 10/100/1000 Mbps WAN/LAN ports
Antenna	5× external antennas
Button	1× Mesh/WPS button, 1× Reset button
Power	Input: AC 100-240V~50/60Hz 0.5A, Output: DC 12V⎓2A
LED indicator	1× LED
Dimensions	290.25 × 52.4 × 230 mm (L×W×H)

Wireless

Wireless Standards	IEEE 802.11be/ax/ac/n/a (5 GHz), IEEE 802.11be/ax/n/b/g (2.4 GHz)
Data Rate	5 GHz: 5765 Mbps (802.11be, HE160), 2.4 GHz: 1376 Mbps (802.11be)
Frequency	2.4 GHz: 2412-2472 MHz, 5 GHz: 5150-5350 MHz & 5725-5850 MHz
Transmission Power	CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz); FCC: <30 dBm (both bands)
Basic Features	SSID Broadcast/Hide, MU-MIMO, Beamforming, OFDMA, MLO, 4K-QAM, Multi-RUs, Xtra Range 3.0
Wireless Security	WPA2-PSK, WPA3-SAE/WPA2-PSK, WPS, Wireless Enable/Disable

Software

Internet Connection Type	PPPoE, Dynamic IP, Static IP, PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Network Protocol	IPv4 & IPv6
Operating Mode	Router Mode, AP Mode, Universal Repeater (Client+AP, WISP)
Parental Control	Client Filter, URL Filter, Time Limit
DHCP	Server, Client List, Static IP Reservation
Virtual Server	Port Forwarding, DMZ Host, UPnP
DDNS	DynDNS, No-IP, Oray, 88ip
VPN	PPTP/L2TP/OpenVPN/WireGuard Client & Server, IPSec/L2TP/PPTP Pass-through
Special Features	EasyMesh, Wi-Fi+, NFC, IoT Network, IPTV, Bandwidth Control, Smart Diagnosis
Other Function	App & Web Management, MAC Clone, Black/White List, Static Routing, LED Control
Firewall	ICMP/TCP/UDP Flood Defense, Block Ping from WAN

Others

Temperature	Operating: 0℃~40℃, Storage: -40℃~70℃
Humidity	Operating: 10%~90% RH (non-condensing), Storage: 5%~90% RH (non-condensing)
Certification	CE, FCC, RoHS
Package Content	BE12 Pro Router ×1, Power Adapter ×1, Cat6 Ethernet Cable ×1, NFC Sticker ×1, Quick Installation Guide ×1

Warranty & Support

Warranty

1 Year Official Warranty

Tenda BE12 Pro BE7200 Dual Band Gigabit Wi-Fi 7 Router
