HG1 V3.0 Single Port XPON ONT

Tenda / Tenda FTTx

HG1 V3.0 Single Port XPON ONT

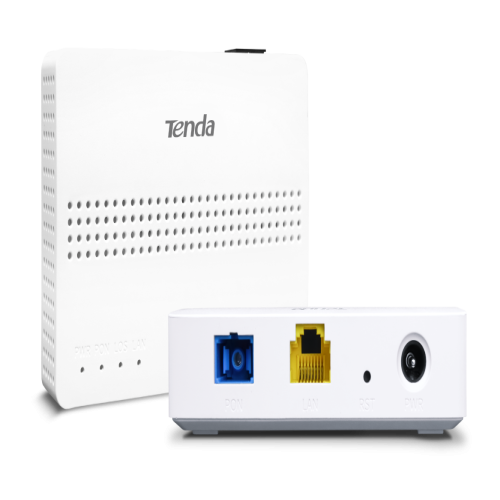

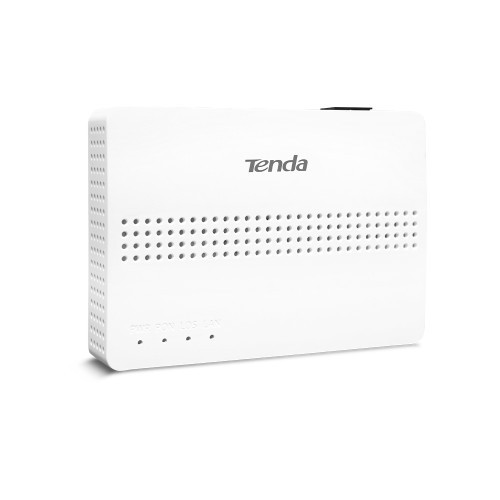

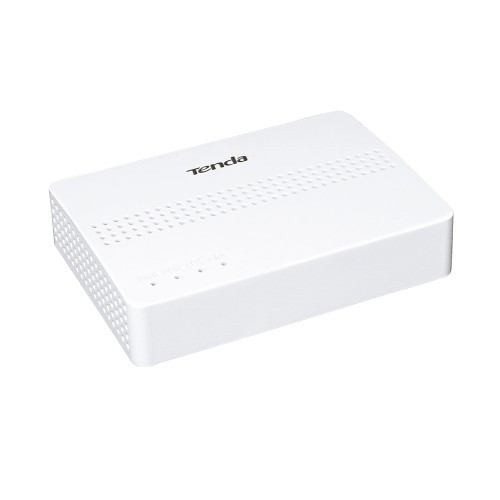

Tenda HG1 Xpon Single Port Gigabit Optical Network Terminal (White)

Key Features
  • Compact single-port XPON ONT with automatic GPON/EPON detection for easy FTTH deployment
  • Delivers up to 2.5Gbps downstream with stable Gigabit Ethernet performance
  • Ultra-low power consumption and mini size, ideal for simple wired internet setups
  • Supports TR-069 remote management and IPTV, perfect for cost-effective ISP deployments
Brand Tenda
Category Tenda FTTx
Model HG1 V3.0 Single Port XPON ONT
Availability In Stock
General
ONU Type Single Port XPON ONT
Color White
Network
XPON Support true
GPON Standard ITU-T G.984
EPON Standard IEEE 802.3ah
WAN Type XPON
Wireless
WiFi Standard N/A
WiFi Frequency N/A
WiFi Speed N/A
Antenna Quantity N/A
Antenna Gain N/A
Interface
LAN Port 1 Port
LAN Port Speed 10/100/1000 Mbps
PON Port 1x SC/APC
RJ11 Port None
CATV Port None
Features
VoIP Support No
IPTV Support true
IPv6 Support true
TR069 Support true
Mesh Support No
Optical
Optical Connector SC/APC
Optical Wavelength Tx 1310nm, Rx 1490nm
Receiving Sensitivity -28 ~ -8 dBm
Power
Power Supply DC 9V / 0.6A
Power Consumption ≤ 5.4W
Physical
Dimensions 59 × 57 × 23 mm
Weight ≈ 95g
Hardware
Chipset High Performance XPON SoC
LED indicator PWR, PON, LOS, LAN
Flash Memory 128MB
Button Reset Button
Warranty & Support
Warranty 1 Year Official Warranty
