Tenda / Wireless Access Point

OAP1200

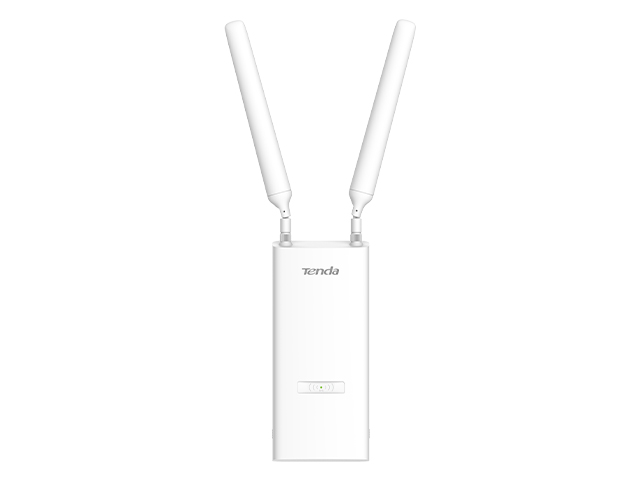

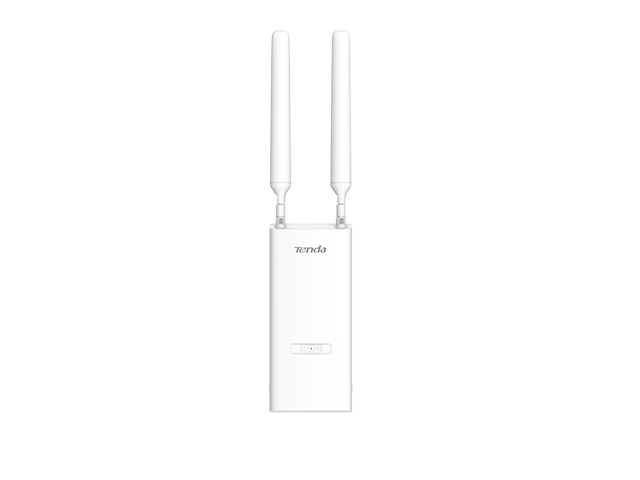

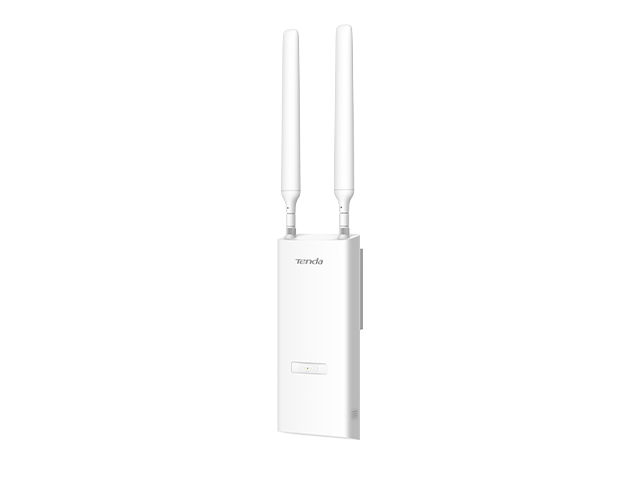

Tenda OAP1200 802.11AC Indoor/Outdoor Wi-Fi Access Point

Key Features
  • AC1200 Dual Band — Up to 1167 Mbps (300 + 867 Mbps) with MU-MIMO & Beamforming
  • IP65 Outdoor Ready — Waterproof design with 200m coverage radius
  • Gigabit PoE Support — 802.3af + 24V Passive PoE for flexible installation
  • High Capacity — Supports up to 256 clients (50 recommended) with Fast Roaming
Brand Tenda
Category Wireless Access Point
Model OAP1200
Availability In Stock
General
Device Type 802.11AC Dual-Band Indoor/Outdoor Wi-Fi Access Point
Color White
Wireless
WiFi Standard IEEE 802.11a/b/g/n/ac (Wave 2)
Wireless Speed Up to 1167 Mbps (300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz)
Data Rate 2.4 GHz: 1-300 Mbps, 5 GHz: 6-867 Mbps
Transmission Power 2.4 GHz: ≤ 26 dBm, 5 GHz: ≤ 26 dBm (FCC)
Antenna Type 2 × External Omni-directional Antennas (RP-SMA)
Antenna Gain 5 dBi
Coverage Area Up to 200 meters radius (open area)
Physical
Dimensions 194.7 × 83 × 42.1 mm
Interface
LAN Port 1 × 10/100/1000 Mbps Gigabit Ethernet Port (PoE)
LAN Port Speed 10/100/1000 Mbps
Reset Button Yes
LED Indicator Yes (SYS)
PoE
PoE Support Yes (IEEE 802.3af & 24V 0.5A Passive PoE)
Security
Wireless Encryption WEP, WPA-PSK, WPA2-PSK, WPA, WPA2
MAC Filtering Yes
MU-MIMO Support Yes
Features
VLAN Yes
Access Point Mode Yes
Repeater Mode Yes (Client + AP)
Mesh Support No (supports Fast Roaming 802.11k/v/r)
Beamforming Yes
Network
Frequency Band Dual Band (2.4 GHz & 5 GHz Concurrent)
Environment
Operating Temperature -20°C ~ 55°C (typical outdoor range)
Humidity 10% ~ 90% (non-condensing)
Others
Certification CE, FCC, RoHS
Package Content 1 × OAP1200 Access Point, 2 × 5dBi Antennas, 1 × Mounting Kit (Pole/Wall), 1 × User Manual
Warranty & Support
Warranty 1 Year Official Warranty
