S110PC

Tenda / PoE Switch

S110PC

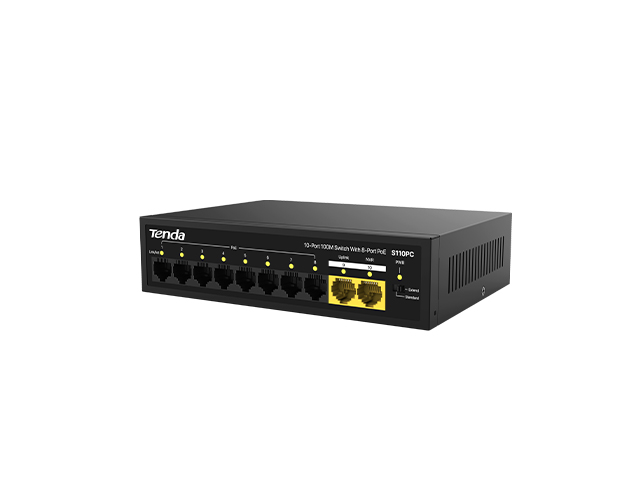

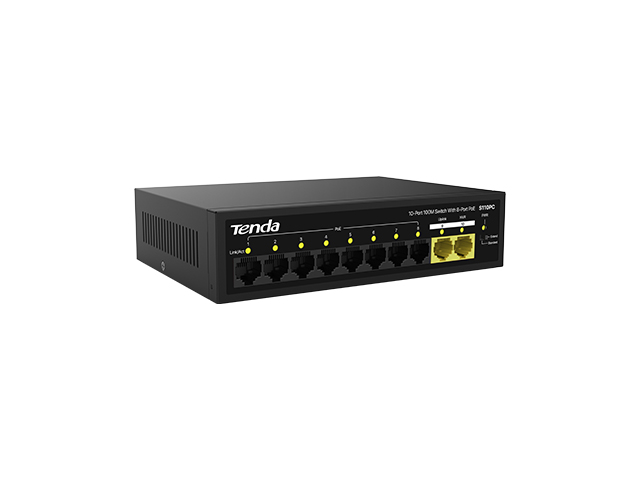

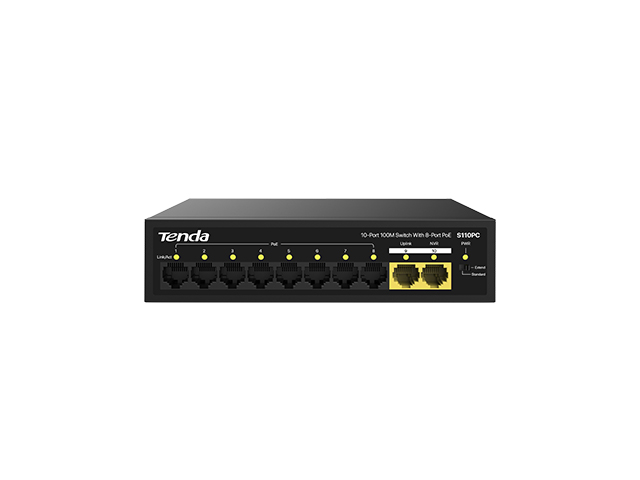

Tenda S110PC 10-Port 100M Lite unmanaged PoE Switch

Key Features
  • Supports desktop and wall-mounting
  • Support two modes of Default,Extend
  • Single port output power 30W,maximum output power 75W
  • 8×PoE+ 10/100Mbps RJ45 ports,2×10/100Mbps RJ45 ports
Brand Tenda
Category PoE Switch
Model S110PC
Availability In Stock
General
Switch Type Unmanaged Lite PoE Switch
Layer L2
Form Factor Desktop / Wall Mount
Ports
Total Ports 10
RJ45 Ports 10
Gigabit Ports 0
SFP Ports 0
Uplink Ports 2 × 10/100 Mbps RJ45
Console Port No
PoE
PoE Support Yes
PoE Standard IEEE 802.3af / 802.3at
PoE Ports 8 × 10/100 Mbps PoE+
PoE Budget 80W
Max Power per Port 30W
Performance
Switching Capacity 2 Gbps
Forwarding Rate 1.49 Mpps
MAC Address Table 2K
Jumbo Frame Not Supported
Features
VLAN Yes (One-Key VLAN)
QoS No
Link Aggregation No
IGMP Snooping No
Port Isolation Yes (VLAN Mode)
Port Mirroring No
Storm Control No
Security
Port Security No
ACL No
802.1X No
Loop Protection No
Management
Web UI No
Cloud Management No
SNMP No
CLI No
Plug & Play Yes
Power
Power Supply AC 100-240V, 50/60Hz (External Adapter)
Power Consumption ≤90W (with full PoE load)
Lightning Protection 4kV
Physical
Dimensions 200 × 118 × 44 mm
Weight ≈ 0.65 kg
Mounting Desktop / Wall Mount
Fan Fanless
Environment
Operating Temperature 0°C to +40°C
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
