Tenda / Unmanaged switch

TEG1016M

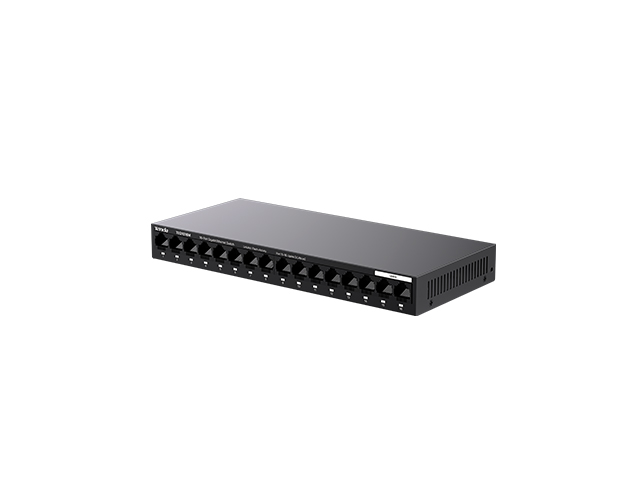

Tenda TEG1016M Gigabit unmanaged Ethernet switch

Key Features
  • 16×10/100/1000Mbps Gigabit RJ45 ports
  • 32 Gbps switching capacity with wire-speed forwarding
  • 6kV lightning protection on all ports
  • Fanless silent design with easy plug & play installation
Brand Tenda
Category Unmanaged switch
Model TEG1016M
Availability In Stock
General
Switch Type Unmanaged Gigabit Ethernet Switch
Layer L2
Form Factor Desktop / Wall Mount
Ports
Total Ports 16
RJ45 Ports 16
Gigabit Ports 16 × 10/100/1000 Mbps
SFP Ports 0
Uplink Ports All 16 ports
Console Port No
PoE
PoE Support No
PoE Standard TEG1016M
PoE Ports 0
PoE Budget TEG1016M
Max Power per Port TEG1016M
Performance
Switching Capacity 32 Gbps
Forwarding Rate 23.81 Mpps
MAC Address Table 8K
Jumbo Frame Supported (9KB)
Features
VLAN No
QoS No
Link Aggregation No
IGMP Snooping No
Port Isolation No
Port Mirroring No
Storm Control No
Security
Port Security No
ACL No
802.1X No
Loop Protection No
Management
Web UI No
Cloud Management No
SNMP No
CLI No
Plug & Play Yes
Power
Power Supply AC 100-240V, 50/60Hz (External Adapter)
Power Consumption ≤10W
Lightning Protection 6kV (All Ports)
Physical
Dimensions 294 × 179 × 44 mm
Weight ≈ 1.5 kg
Mounting Desktop / Wall Mount
Fan Fanless
Environment
Operating Temperature 0°C to +40°C
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Warranty & Support
Warranty 1 Year Official Warranty
