TEG1024D

Tenda / Unmanaged switch

TEG1024D

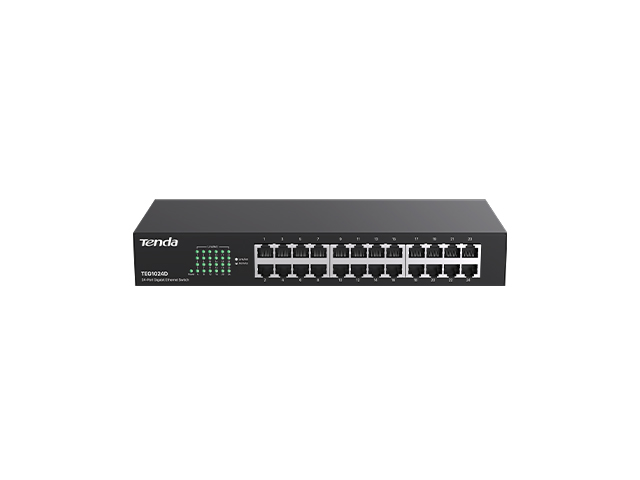

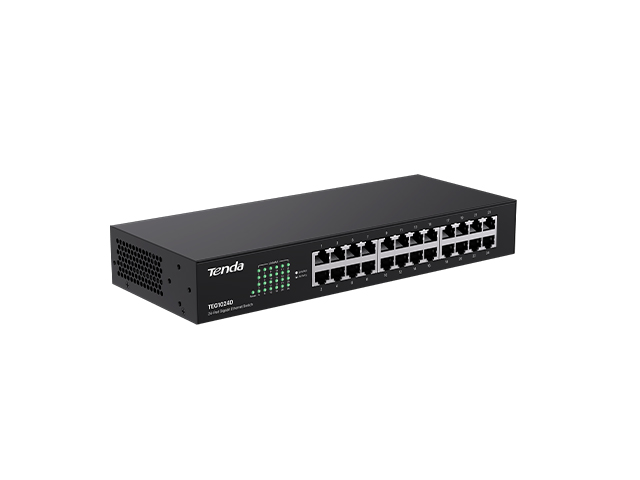

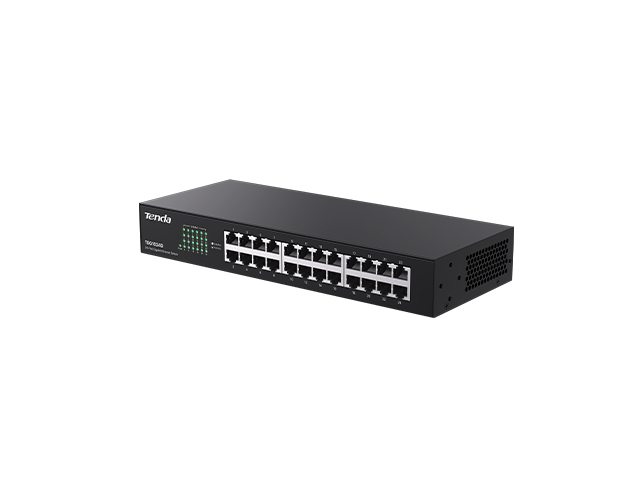

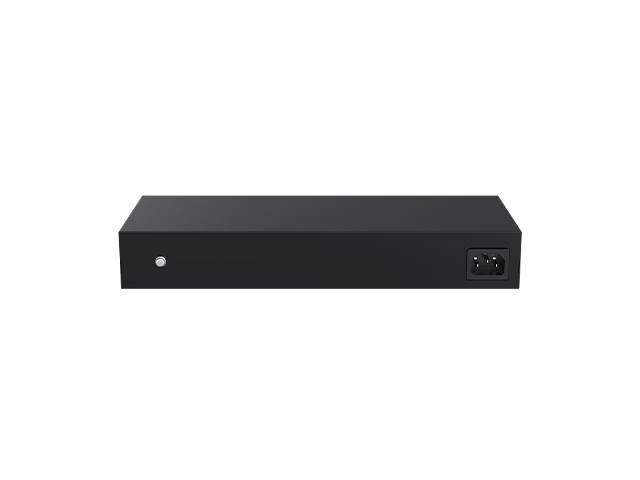

Tenda TEG1024D v9.0 24-Port Gigabit Ethernet Switch

Key Features
  • 24×10/100/1000Mbps Gigabit RJ45 ports
  • 48 Gbps switching capacity with wire-speed forwarding
  • 6kV lightning protection on all ports
  • Fanless design with desktop and rackmount support
Brand Tenda
Category Unmanaged switch
Model TEG1024D
Availability In Stock
General
Switch Type Unmanaged Gigabit Ethernet Switch
Layer L2
Form Factor Desktop / Rackmount (1U)
Ports
Total Ports 24
RJ45 Ports 24
Gigabit Ports 24 × 10/100/1000 Mbps
SFP Ports 0
Uplink Ports All 24 ports
Console Port No
PoE
PoE Support No
PoE Standard N/A
PoE Ports 0
PoE Budget N/A
Max Power per Port N/A
Performance
Switching Capacity 48 Gbps
Forwarding Rate 35.71 Mpps
MAC Address Table 8K
Jumbo Frame Supported
Features
VLAN No
QoS No
Link Aggregation No
IGMP Snooping No
Port Isolation No
Port Mirroring No
Storm Control No
Security
Port Security No
ACL No
802.1X No
Loop Protection No
Management
Web UI No
Cloud Management No
SNMP No
CLI No
Plug & Play Yes
Power
Power Supply AC 100-240V, 50/60Hz (External Adapter)
Power Consumption <15W
Lightning Protection 6kV (All Ports)
Physical
Dimensions 294 × 179 × 44 mm
Weight ≈ 1.8 kg
Mounting Desktop / Rackmount
Fan Fanless
Environment
Operating Temperature 0°C to +40°C
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Warranty & Support
Warranty
