TEG2216D

Tenda / Managed switch

TEG2216D

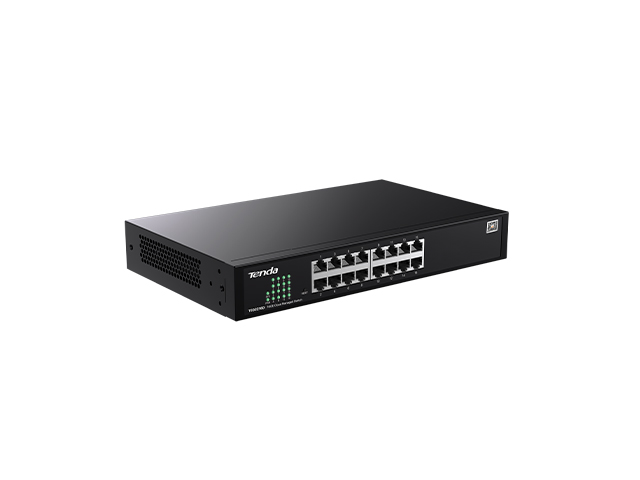

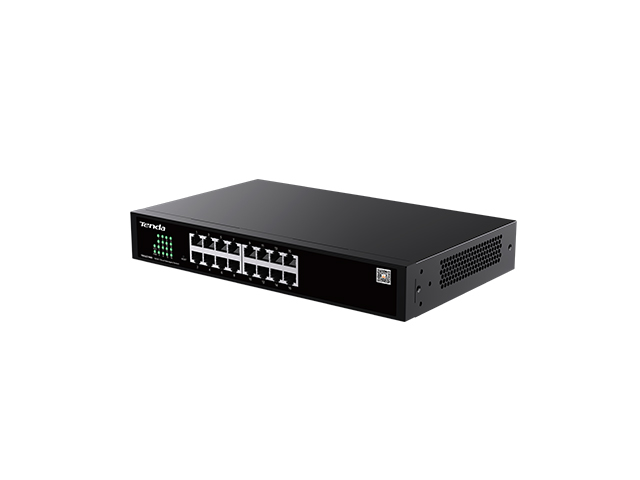

Tenda TEG2216D 16-Port Gigabit Cloud Managed Ethernet Switch

Key Features
  • 16×10/100/1000 Mbps Gigabit RJ45 ports
  • 32 Gbps switching capacity with cloud management
  • Loop detection and unauthorized DHCP alerting
  • Fanless design with flexible mounting options
Brand Tenda
Category Managed switch
Model TEG2216D
Availability In Stock
General
Switch Type Cloud Managed Gigabit Switch
Layer L2
Form Factor Desktop / Wall Mount / Rackmount (with ears)
Ports
Total Ports 16
RJ45 Ports 16
Gigabit Ports 16 × 10/100/1000 Mbps
SFP Ports 0
Uplink Ports All 16 ports
Console Port No
PoE
PoE Support No
PoE Standard N/A
PoE Ports 0
PoE Budget N/A
Max Power per Port N/A
Performance
Switching Capacity 32 Gbps
Forwarding Rate 23.81 Mpps
MAC Address Table 8K
Jumbo Frame Supported
Features
VLAN Yes (QVLAN)
QoS Yes
Link Aggregation No
IGMP Snooping Yes
Port Isolation Yes
Port Mirroring Yes
Storm Control Yes
Security
Port Security Yes
ACL Yes
802.1X No
Loop Protection Yes (Loop Detection)
Management
Web UI Yes
Cloud Management Yes (Tenda CloudFi)
SNMP No
CLI Limited
Plug & Play Partial (Cloud)
Power
Power Supply AC 100-240V, 50/60Hz (External Adapter)
Power Consumption <12W
Lightning Protection 6kV
Physical
Dimensions 294 × 179 × 44 mm
Weight ≈ 1.8 kg
Mounting Desktop / Wall Mount / Rackmount
Fan Fanless
Environment
Operating Temperature 0°C to +40°C
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Warranty & Support
Warranty 1 Year Official Warranty
