TEG2220P-16-250W

Tenda / PoE Switch

TEG2220P-16-250W

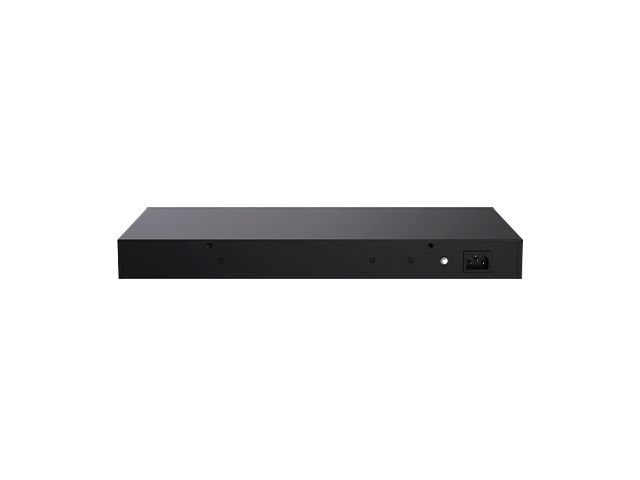

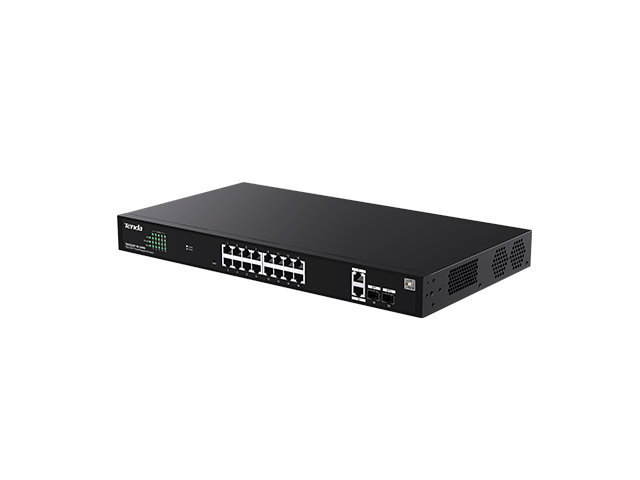

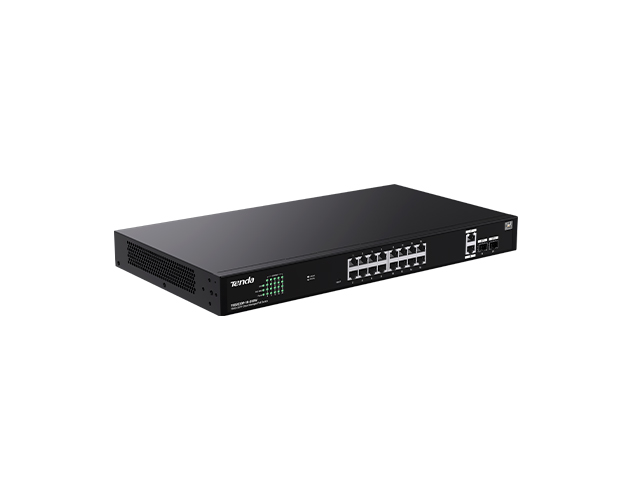

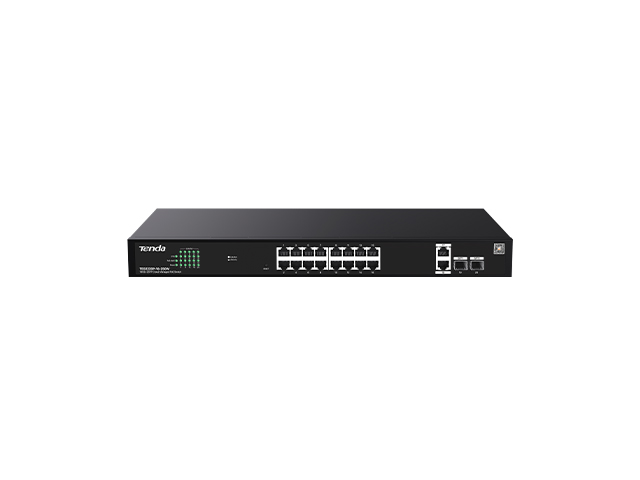

Tenda TEG2220P-16-250W 16-Port Gigabit Cloud Managed PoE Switch with 2 SFP

Key Features
  • 16×Gigabit PoE+ ports + 2×Gigabit RJ45 + 2×Gigabit SFP uplinks
  • 230W-250W PoE budget with IEEE 802.3af/at support (up to 30W per port)
  • Cloud management via Tenda CloudFi platform
  • 40 Gbps switching capacity with loop detection
Brand Tenda
Category PoE Switch
Model TEG2220P-16-250W
Availability In Stock
General
Switch Type Cloud Managed PoE Switch
Layer L2
Form Factor Desktop / Rackmount (1U)
Ports
Total Ports 20
RJ45 Ports 18
Gigabit Ports 18 × 10/100/1000 Mbps PoE+
SFP Ports 2 × 1000 Mbps SFP
Uplink Ports 2 × Gigabit SFP (or configurable)
Console Port No
PoE
PoE Support Yes
PoE Standard IEEE 802.3af / 802.3at
PoE Ports 16 × Gigabit PoE+
PoE Budget 230W (or up to 250W max)
Max Power per Port 30W
Performance
Switching Capacity 40 Gbps
Forwarding Rate 29.76 Mpps
MAC Address Table 8K
Jumbo Frame Supported
Features
VLAN Yes (QVLAN, One-Key VLAN)
QoS Yes
Link Aggregation Yes
IGMP Snooping Yes
Port Isolation Yes
Port Mirroring Yes
Storm Control Yes
Security
Port Security Yes
ACL Yes
802.1X No
Loop Protection Yes (Loop Detection)
Management
Web UI Yes
Cloud Management Yes (Tenda CloudFi)
SNMP No
CLI Limited
Plug & Play Partial (Cloud)
Power
Power Supply AC 100-240V, 50/60Hz (Built-in)
Power Consumption ≤280W (with full PoE load)
Lightning Protection 6kV
Physical
Dimensions 440 × 240 × 44 mm
Weight ≈ 3.5 kg
Mounting Rackmount / Desktop
Fan With Smart Fan
Environment
Operating Temperature 0°C to +40°C
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Warranty & Support
Warranty 1 Year Official Warranty
