TEG2228P-24-410W

Tenda / PoE Switch

TEG2228P-24-410W

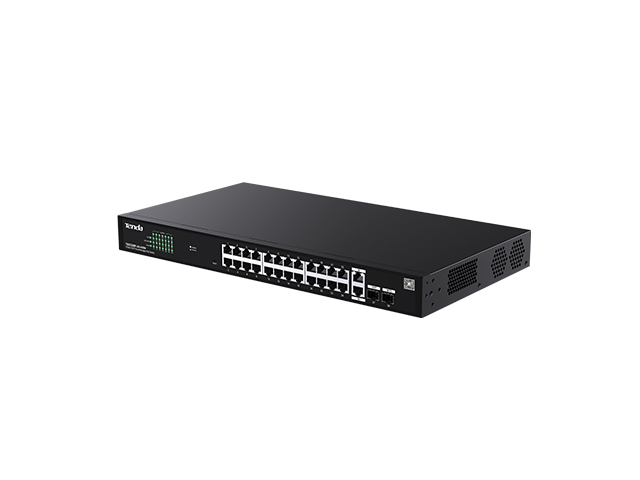

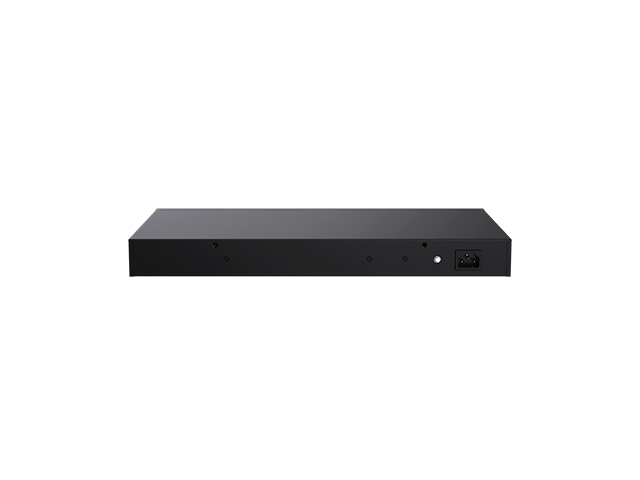

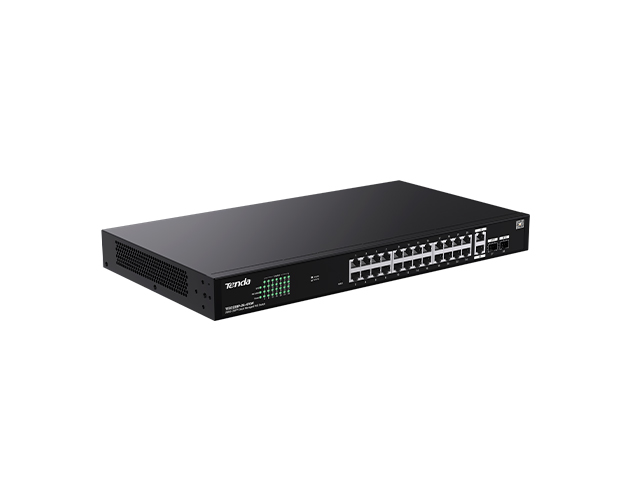

Tenda TEG2228P-24-410W 24-Port Gigabit Cloud Managed PoE Switch with 2 SFP

Key Features
  • 24×Gigabit PoE+ ports + 2×Gigabit SFP uplinks
  • 410W PoE budget with IEEE 802.3af/at support (up to 30W per port)
  • Cloud management via Tenda CloudFi platform
  • 56 Gbps switching capacity with loop detection
Brand Tenda
Category PoE Switch
Model TEG2228P-24-410W
Availability In Stock
General
Switch Type Cloud Managed PoE Switch
Layer L2
Form Factor 1U Rackmount
Ports
Total Ports 28
RJ45 Ports 26
Gigabit Ports 26 × 10/100/1000 Mbps PoE+
SFP Ports 2 × 1000 Mbps SFP
Uplink Ports 2 × Gigabit SFP
Console Port No
PoE
PoE Support Yes
PoE Standard IEEE 802.3af / 802.3at
PoE Ports 24 × Gigabit PoE+
PoE Budget 410W
Max Power per Port 30W
Performance
Switching Capacity 56 Gbps
Forwarding Rate 41.67 Mpps
MAC Address Table 8K
Jumbo Frame Supported
Features
VLAN Yes (QVLAN, One-Key VLAN)
QoS Yes
Link Aggregation Yes
IGMP Snooping Yes
Port Isolation Yes
Port Mirroring Yes
Storm Control Yes
Security
Port Security Yes
ACL Yes
802.1X No
Loop Protection Yes (Loop Detection)
Management
Web UI Yes
Cloud Management Yes (Tenda CloudFi)
SNMP No
CLI Limited
Plug & Play Partial (Cloud)
Power
Power Supply AC 100-240V, 50/60Hz (Built-in)
Power Consumption ≤450W (with full PoE load)
Lightning Protection 6kV
Physical
Dimensions 440 × 284 × 44 mm
Weight ≈ 4.0 kg
Mounting Rackmount
Fan With Smart Fan
Environment
Operating Temperature 0°C to +45°C
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Warranty & Support
Warranty 1 Year Official Warranty
