Tenda / Unmanaged switch

TEM2007X

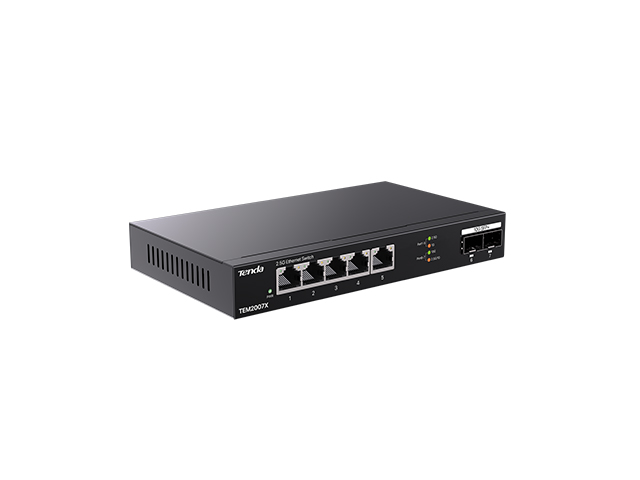

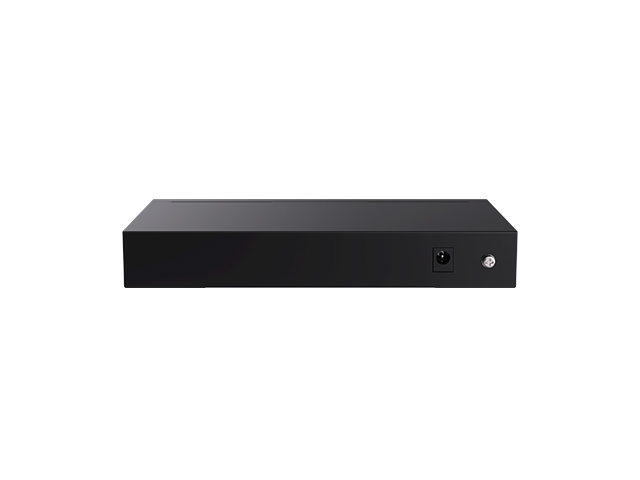

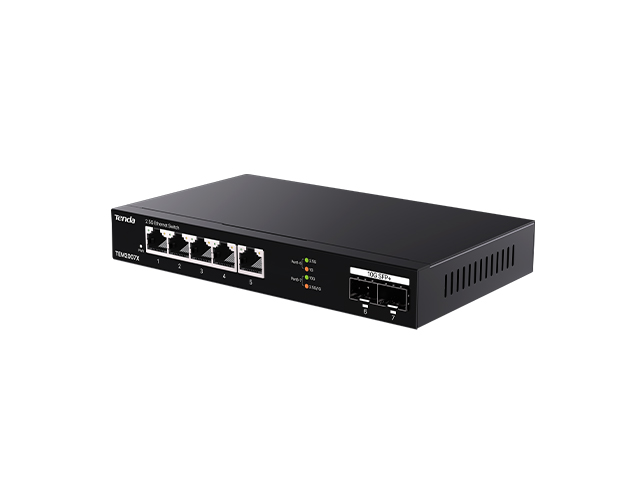

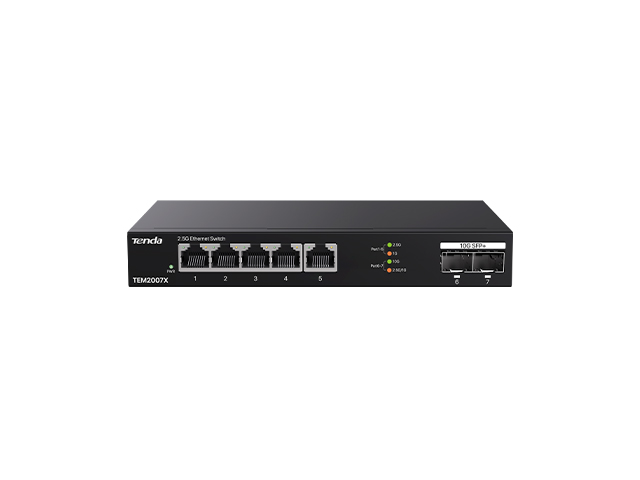

Tenda TEM2007X 5-Port 2.5G Ethernet Switch with 2×10G SFP+ Slots

Key Features
  • 5×2.5G RJ45 ports + 2×10G SFP+ slots
  • 60 Gbps switching capacity with wire-speed forwarding
  • 6kV lightning protection on all ports
  • Compact fanless design with easy installation
Brand Tenda
Category Unmanaged switch
Model TEM2007X
Availability In Stock
General
Switch Type Unmanaged Multi-Gigabit Ethernet Switch
Layer L2
Form Factor Desktop
Ports
Total Ports 7
RJ45 Ports 5
Gigabit Ports 5 × 10/100/1000/2500 Mbps
SFP Ports 2 × 10G SFP+
Uplink Ports 2 × 10G SFP+
Console Port N/A
PoE
PoE Support N/A
PoE Standard N/A
PoE Ports N/A
PoE Budget N/A
Max Power per Port N/A
Performance
Switching Capacity 60 Gbps
Forwarding Rate 44.64 Mpps
MAC Address Table 16K
Jumbo Frame 12KB
Features
VLAN N/A
QoS N/A
Link Aggregation N/A
IGMP Snooping N/A
Port Isolation N/A
Port Mirroring N/A
Storm Control N/A
Security
Port Security N/A
ACL N/A
802.1X N/A
Loop Protection N/A
Management
Web UI N/A
Cloud Management N/A
SNMP N/A
CLI N/A
Plug & Play Yes
Power
Power Supply AC 100-240V, 50/60Hz (External Adapter)
Power Consumption <12W
Lightning Protection 6kV
Physical
Dimensions 140 × 84 × 26 mm
Weight ≈ 0.4 kg
Mounting Desktop / Wall Mount
Fan Fanless
Environment
Operating Temperature 0°C to +40°C
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x
Warranty & Support
Warranty 1 Year Official Warranty
