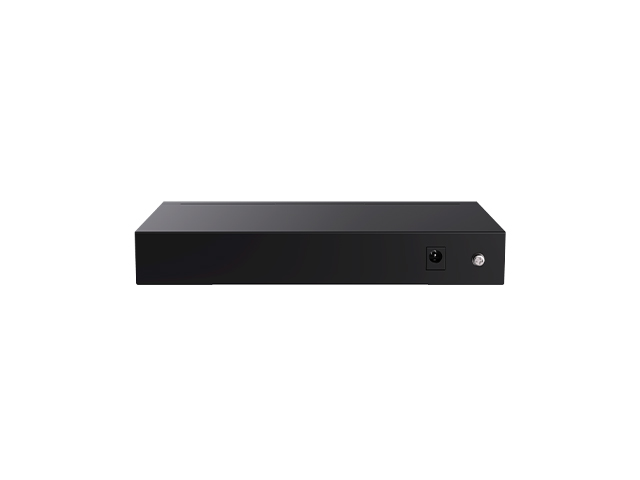

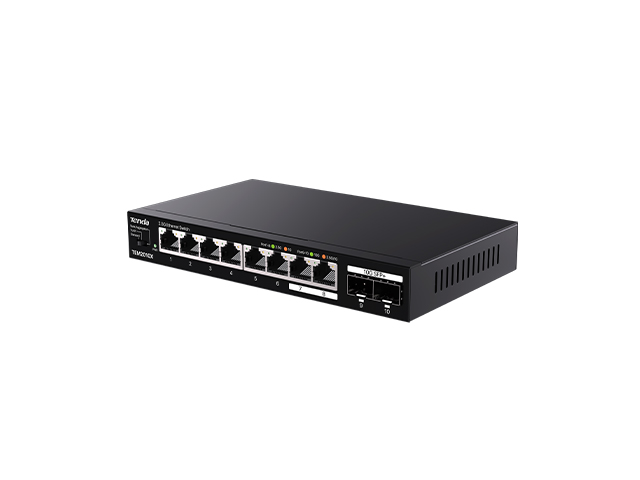

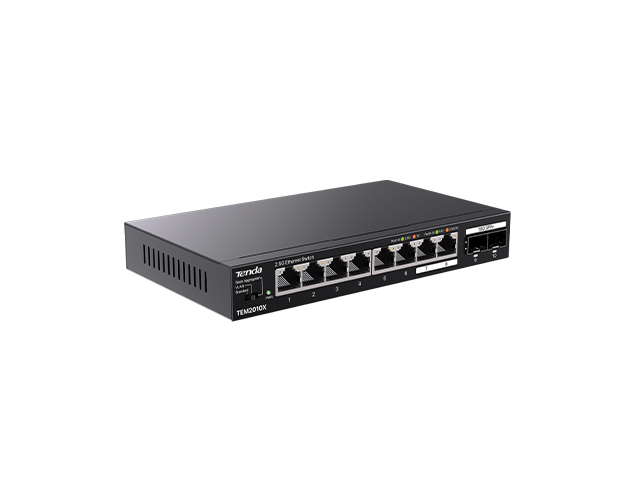

View 1 View 2 View 3 View 4
Promotion
Tenda / Unmanaged switch

TEM2010X

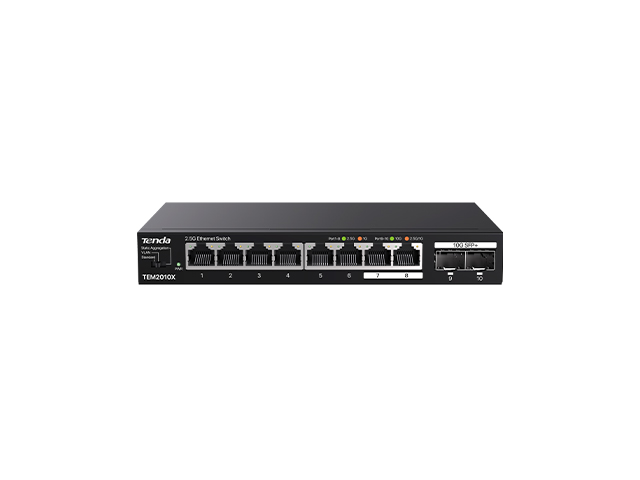

Tenda TEM2010X 8-Port 2.5G Ethernet Switch with 2×10G SFP+ Slots

Key Features
  • 8×2.5G RJ45 ports + 2×10G SFP+ slots
  • 80 Gbps switching capacity with wire-speed forwarding
  • 6kV lightning protection on all ports
  • Compact fanless design with easy installation
Brand Tenda
Category Unmanaged switch
Model TEM2010X
Availability In Stock
General
Switch Type Unmanaged Multi-Gigabit Ethernet Switch
Layer L2
Form Factor Desktop
Ports
Total Ports 10
RJ45 Ports 8
Gigabit Ports 8 × 10/100/1000/2500 Mbps
SFP Ports 2 × 10G SFP+
Uplink Ports 2 × 10G SFP+
Console Port No
PoE
PoE Support No
PoE Standard N/A
PoE Ports 0
PoE Budget N/A
Max Power per Port N/A
Performance
Switching Capacity 80 Gbps
Forwarding Rate 59.52 Mpps
MAC Address Table 16K
Jumbo Frame 12KB
Features
VLAN No
QoS No
Link Aggregation No
IGMP Snooping No
Port Isolation No
Port Mirroring No
Storm Control No
Security
Port Security No
ACL No
802.1X No
Loop Protection No
Management
Web UI No
Cloud Management No
SNMP No
CLI No
Plug & Play Yes
Power
Power Supply AC 100-240V, 50/60Hz (External Adapter)
Power Consumption <15W
Lightning Protection 6kV
Physical
Dimensions 200 × 118 × 44 mm
Weight ≈ 0.8 kg
Mounting Desktop / Wall Mount
Fan Fanless
Environment
Operating Temperature 0°C to +40°C
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x
Warranty & Support
Warranty 1 Year Official Warranty
