Hardware
| Standard&Protocol |
IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Interface |
1*10/100/1000Mbps WAN port 3*10/100/1000Mbps LAN ports |
| Antenna |
5*external antennas |
| Button |
1*WPS/Reset button |
| Power |
Input: AC 100-240V~50/60Hz Output: DC 12V1A |
| LED indicator |
1* LED |
| Dimensions |
244*56*200mm(L*W*H) |
Wireless
| Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| Data Rate |
5GHz:1201Mbps 2.4GHz:300Mbps |
| Frequency |
CE: 2.4G: 2412-2472MHz(CH1-CH13) 5G: 5150-5250MHz(CH36-CH48) FCC: 2.4G: 2412-2462MHz(CH1-CH11) 5G: 5150-5250MHz(CH36-CH48) 5725-5850MHz(CH149-CH165) |
| Transmission Power |
CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
| Basic Features |
OFDMA+MU-MIMO Beamforming Signal Directional Transmission Technology |
| Wireless Security |
WPA2-PSK,WPA3-SAE/WPA2-PSK Wireless Encryption Disable and Enable WPS Fast Connection |
Software
| Internet Connection Type |
PPPOE, Dynamic IP, Static IP |
| Network Protocol |
IPv4&IPv6 |
| Operating Mode |
Wireless Relay Mode (Client+AP) |
| Parental Control |
Client Filter Remote Web Management |
| DHCP |
DHCP Server DHCP Client List DHCP Static IP Address Reservation and Assignment |
| Virtual Server |
Port Forwarding, DMZ Host, UPnP |
| Firewall |
ICMP Flood Attack Defense TCP Flood Attack Defense UDP Flood Attack Defense Ignore Ping Packet From WAN Port |
| DDNS |
Support DynDNS, No-ip |
| VPN |
IPSec Transparent Transmission PPTP Transparent Transmission L2TP Transparent Transmission PPTP VPN Server PPTP VPN Client L2TP VPN Client |
| Special Features |
Wi-Fi+(Mesh System) IPTV IPv6 Smart LED on/off |
| Other Function |
Support App and web management Bandwidth Control Guest Network MAC Address Clone Supports black list and white list Unify 2.4 GHz & 5 GHz Static Routing Remote Web Management Backup & Restore configurations Firmware upgrade online |
Others
| Temperature |
Operating Temperature : 0℃~40℃ Storage Temperature : -40C ~70℃ |
| Humidity |
Operating Humidity : 10 %~90% RH non-condensing Storage Humidity : 5 %~ 90%RH non-condensing |
| Certification |
CE, FCC,RoHS |
| Package Content |
Dual Band Gigabit Wi-Fi 6 Router*1 Ethernet Cable*1 Power Adapter*1 Installation Guide*1 |
Warranty & Support
| Warranty |
1 Year Official Warranty |

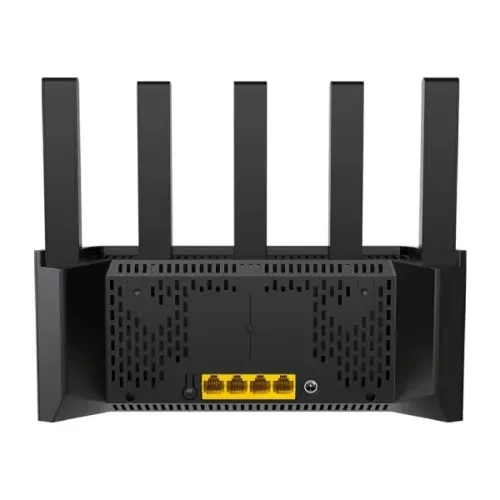

TX2L Pro is an entry-level dual-band Gigabit Wi-Fi 6 router designed for home users, its dual-band concurrent speed is up to 1501 Mbps(5GHz: 1201 Mbps 2.4 GHz: 300 Mbps). TX2L Pro is equipped with 2 high-performance modules and 5 external high-gain antennas，it can effectively enhance signal transmission and reception sensitivity, and extend Wi-Fi 6 to every corner of your home.supporting Tenda Wi-Fi+ technology, it can be networked with Tenda products that support Wi-Fi+ with one click, you can enjoy a broder and smoother network. More devices can be connected to the internet at the same time with lower lag, and the transmission efficiency is significantly improved by OFDMA+MU-MIMO technology. With 4 Gigabit Ethernet ports，wired devices can be connected with faster speed, which make sure all kinds of wired devices work smoothly，just enjoy the ultra-speed network.
