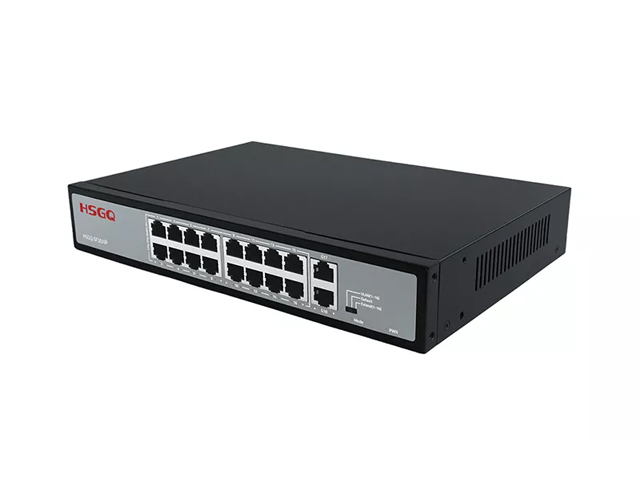

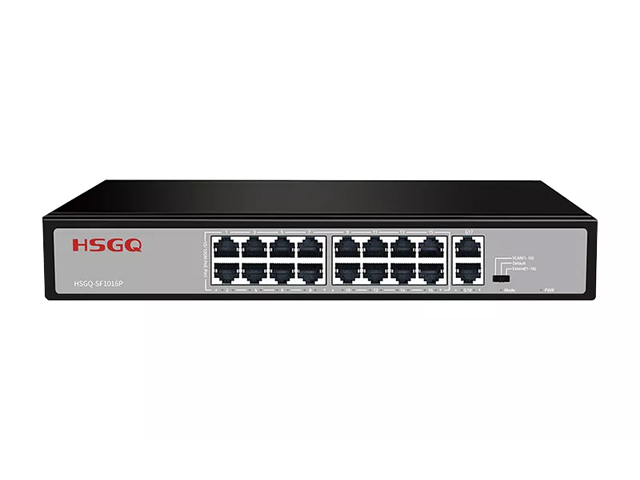

HSGQ-SF1016P 16-Port 100M PoE Switch with 2 Gigabit Uplink

The HSGQ-SF1016P is a high-performance unmanaged PoE switch ideal for medium-scale IP surveillance systems, wireless access point deployments, and enterprise PoE networks. It features 16×10/100Mbps PoE ports and 2×Gigabit uplink ports, offering a total of 18 ports for seamless data and power transmission.

Powerful PoE Capability

This switch supports IEEE 802.3af/at PoE standards with up to 30W per port and a total power budget of 200W. It can easily power multiple high-consumption devices such as PTZ cameras, high-resolution IP cameras, wireless APs, and VoIP phones.

Intelligent DIP Switch Modes

Equipped with a 3-mode DIP switch (Default, VLAN, Extend) for easy operation. In Extend mode, PoE ports 1-16 support data and power transmission up to 250 meters at 10Mbps, perfect for long-distance camera installations.

High-Speed Uplink & Stable Performance

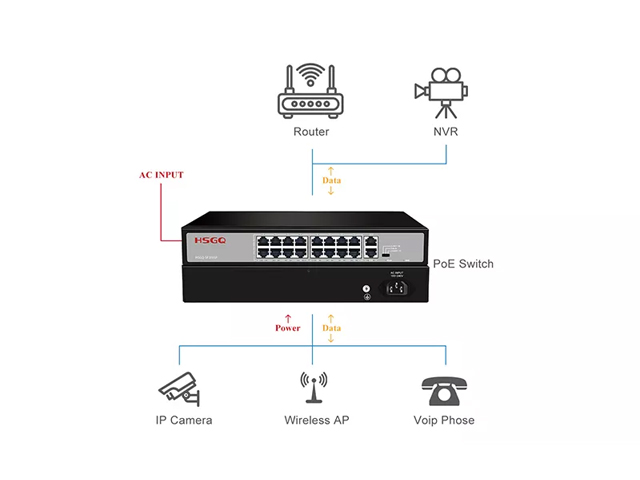

The 2×Gigabit uplink ports provide high-bandwidth connections to NVRs, core switches, or routers, preventing bottlenecks in video transmission. With 7.2Gbps switching capacity and store-and-forward technology, it ensures smooth and reliable network performance.

Reliable & User-Friendly Design

The fanless metal housing design ensures silent operation and excellent heat dissipation for 24/7 use. Its plug-and-play functionality requires no complex configuration, making deployment quick and hassle-free. It also supports both desktop and 1U rackmount installation.

The HSGQ-SF1016P is an excellent, cost-effective solution for medium-sized CCTV projects, schools, hotels, offices, and small-to-medium enterprises requiring stable PoE power delivery and high uplink bandwidth.
