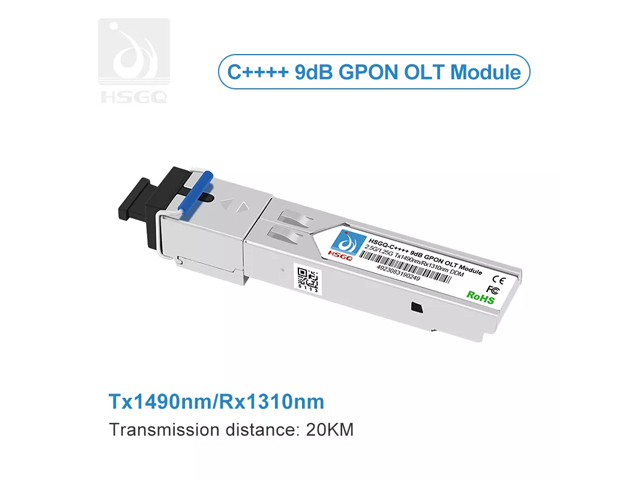

C++++ 9dB GPON OLT SFP Module (20km)
The C++++ High Power GPON OLT SFP Module is designed for large-scale GPON deployments requiring longer distance and higher split ratios. With selectable TX power options 9dB), it delivers strong optical performance up to 20km, making it ideal for dense FTTH networks and high ONU density applications.
High-Power Class C++++ Performance
Available in multiple power classes (5/7/8/9/10 dB), this module provides enhanced downstream optical power and excellent receiver sensitivity (-32 to -35 dBm), supporting reliable service with 1:128 split ratio.
Reliable GPON Transmission
Supports standard GPON rates of 2.488 Gbps downstream and 1.244 Gbps upstream with SC/UPC connector and full DDM (Digital Diagnostic Monitoring) for real-time optical monitoring.
Wide Compatibility
Hot-pluggable SFP form factor compatible with most major GPON OLT brands. Perfect for ISPs needing high-power PON modules for extended coverage and high user density.
The C+++ 5/7/8/9/10dB GPON OLT SFP Module is a robust and flexible high-power solution for modern GPON fiber access networks.
