STN-RP450BZ

Solitine / Power Supply

STN-RP450BZ

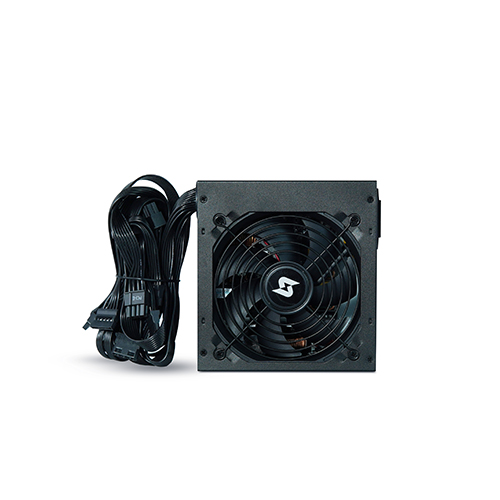

Solitine STN-RP450BZ 450W 80 Plus Bronze Desktop Power Supply (Black)

Key Features
  • 450W Rated Power with 80 Plus Bronze Certification (up to 85% efficiency)
  • Large 12cm silent cooling fan for better thermal performance
  • Full protection suite: OVP, OCP, SCP, OTP
  • Rich connectors: 20+4 Pin, Dual 4+4 Pin CPU, PCIe 6+2 Pin, SATA & Molex
Brand Solitine
Category Power Supply
Model STN-RP450BZ
Availability In Stock
General
Device Type Non-Modular Desktop Power Supply
Form Factor ATX
Power
Rated Power 450W
Efficiency Rating 80 Plus Bronze (Up to 85% efficiency)
Input Voltage AC 220V (180-240V range)
Input Frequency 50/60Hz
Output Voltage +3.3V / +5V / +12V / -12V / +5VSB (Standard ATX rails)
Connector
24-Pin ATX Connector 20+4 Pin (650mm)
CPU Power Connector 4+4 Pin × 2 (700mm)
PCIe Connector 6+2 Pin (500mm)
SATA Connector Multiple SATA connectors
Molex Connector 2 × IDE/Molex (550mm)
Cooling
Fan Size 12 cm Fan
Fan Type Sleeve Bearing / Silent Cooling Fan
Protection
OVP (Over Voltage Protection) Yes
OCP (Over Current Protection) Yes
SCP (Short Circuit Protection) Yes
OTP (Over Temperature Protection) Yes
Physical
Dimensions Standard ATX (approx. 150 × 140 × 86 mm)
Weight Approx. 1.8 – 2.1 kg
Others
Package Content Power Supply Unit, Power Cord, Mounting Screws, User Manual
Warranty & Support
Warranty 1 Year Official Warranty
