General
| Device Type |
WiFi 7 Dual-Band Ceiling / Wall Mount Access Point |
| Color |
White |
Wireless
| WiFi Standard |
WiFi 7 (802.11be), Dual-Band |
| Wireless Speed |
Up to 4.3 Gbps (5 GHz) + 688 Mbps (2.4 GHz) |
| Data Rate |
5 GHz: 4.3 Gbps (BW240), 2.4 GHz: 688 Mbps (BW40) |
| Transmission Power |
5 GHz: 24 dBm, 2.4 GHz: 23 dBm |
| Antenna Type |
Internal Omni-directional |
| Antenna Gain |
5 GHz: 5 dBi, 2.4 GHz: 4 dBi |
| Coverage Area |
Up to 115 m² (1,250 ft²) |
Physical
| Dimensions |
Ø171.5 × 33 mm |
Interface
| LAN Port |
1 × 2.5 GbE RJ45 |
| LAN Port Speed |
2.5 Gbps |
| Reset Button |
Yes |
| LED Indicator |
Yes (White/Blue System LED) |
Security
| Wireless Encryption |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| MAC Filtering |
Yes |
| MU-MIMO Support |
Yes (DL/UL MU-MIMO) |
Features
| VLAN |
Yes |
| Access Point Mode |
Yes |
| Repeater Mode |
N/A |
| Mesh Support |
Yes (Wireless Meshing) |
| Beamforming |
Yes |
Network
| Frequency Band |
Dual-band (2.4 GHz + 5 GHz) |
Environment
| Operating Temperature |
-30°C to 40°C |
| Humidity |
5% ~ 95% (non-condensing) |
Others
| Certification |
CE, FCC, IC |
| Package Content |
1 × U7 Lite Access Point, Lite Mounting Plate, Screws, Quick Start Guide |
Warranty & Support
| Warranty |
1 Year Official Warranty |

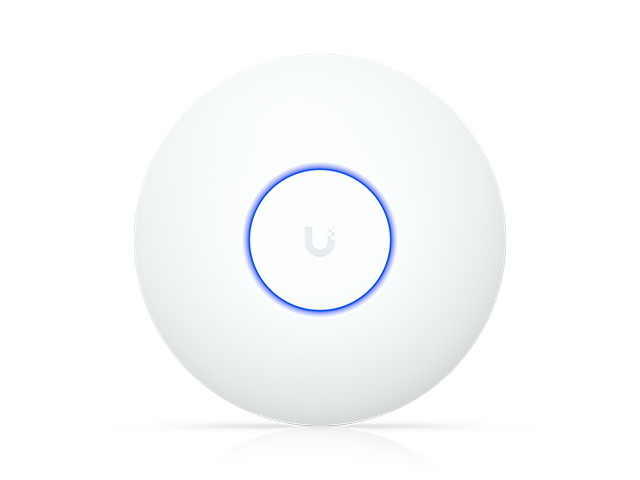

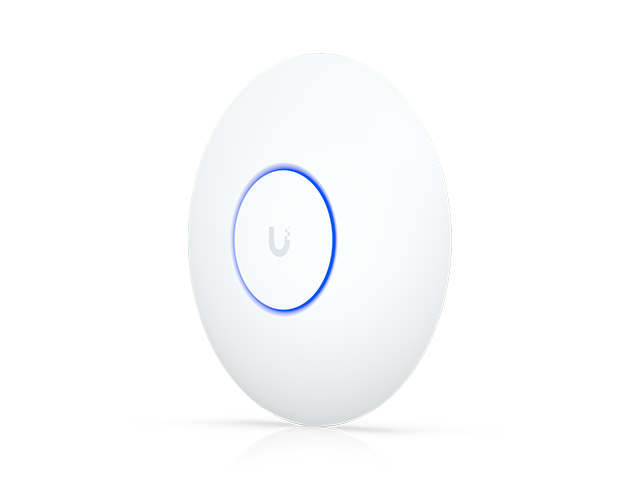

Ubiquiti UniFi U7 Lite (U7-Lite) WiFi 7 Access Point
The Ubiquiti UniFi U7 Lite is a compact and affordable WiFi 7 dual-band access point designed for homes, offices, and small-to-medium businesses. It delivers high-speed performance with a sleek low-profile design.
WiFi 7 Dual-Band Performance
Supports WiFi 7 with up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz. Features 4 spatial streams (2×2 MIMO on both bands) for efficient multi-device connectivity.
Compact Design & Solid Coverage
Ultra-slim design (only 33 mm thick) with coverage up to 115 m². Supports 200+ concurrent clients, making it ideal for apartments, small offices, and medium-density environments.

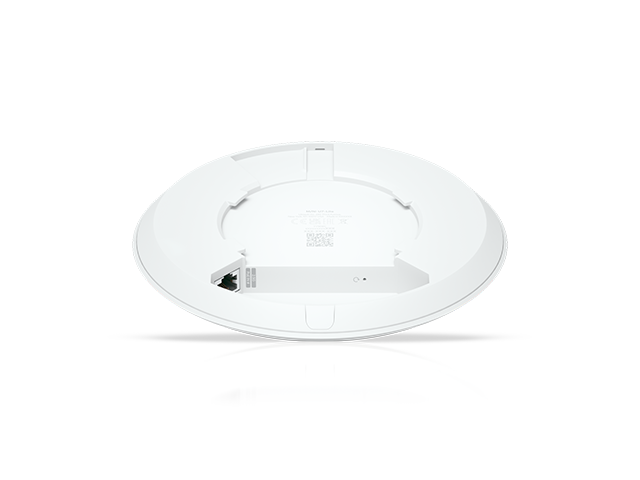

2.5 GbE Uplink & PoE Powered
Equipped with a 2.5 Gigabit Ethernet port for high-speed backhaul and powered via standard PoE. Fully manageable through the UniFi Network application with mesh, band steering, and guest control features.
The UniFi U7 Lite is a cost-effective WiFi 7 access point perfect for modern residential and SMB deployments.
